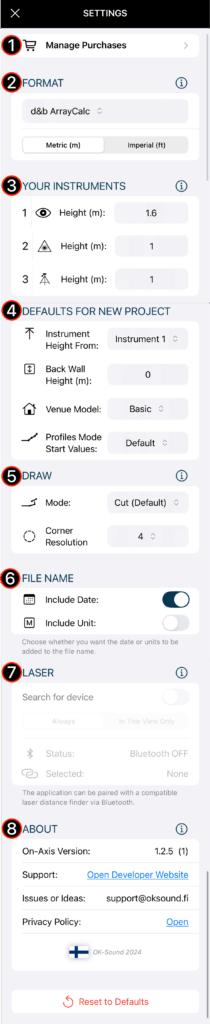

Settings

1 – Manage Purchases

Unlock the app with a one-time purchase or start a full 14-day trial period. After the trial ends, the application still opens and you can explore it and practice using it, only the export button and save and load are disabled.

2 – Format

Select the output format of the exported file. Choose whether the units are in meters or feets. When the unit setting is changed, the current values are converted. Both settings can be changed at any time. See the compatibility chart for supported formats and software versions.

3 – Your Instruments

Set a default height for your personal measuring instruments, up to three default values can be set, for example 1-rangefinder, 2-laser, 3-stand. In the measuring view these values can be quickly recalled using the swipe action.

4 – Defaults for New Project

When a new project is created, these default preferences are loaded from the memory.

5 – Draw

Draw mode selects how the drawing works in a situation where the measurement point is closer than the previous one.

“Uniform” connects the measurement poinst and a plane is drawn between them.

“Cut” is the default setting, and then the drawing is not continued to the next measuring point, but is instead drawn as a back wall.

The “Skip” leaves an empty space between measurement points.

6 – File Name

Choose whether you want the date or units to be added to the file name.

7 – Laser

The On-Axis Application can be used with a compatible laser distance finder. Bluetooth must be turned on, the application must have permission to use it and ”search for device” feature must be turned on. See Bluetooth section for more info and see compatibility chart on the website for supported models.

8 – About

Any problems or challenges, maybe you found a bug? Report them to us so we can develop the app. We are constantly looking for new ideas, feel free to send message if you have any!
