Venue – Circle

UpdatedJune 30, 2025
Byadmin

Model

With this measuring model, you can easily measure a circular venue and add elements such as a stage or jumbotron to it.

Edit View

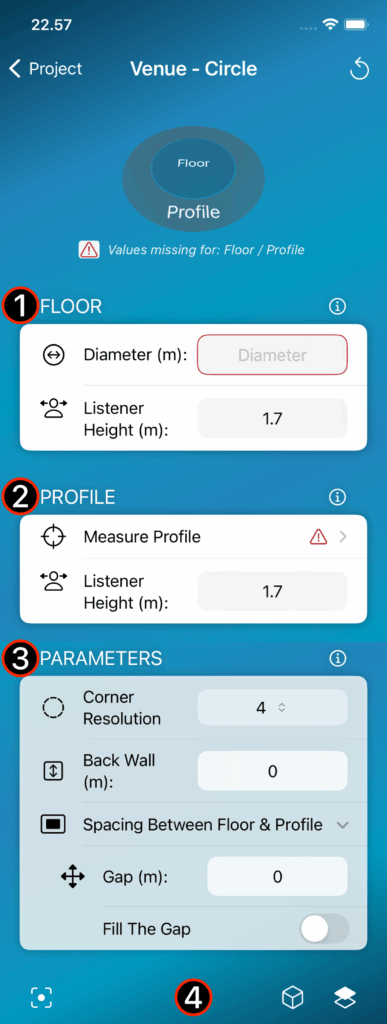

Step 1 – Measure the venue floor

Set the floor Diameter
Listener Height for floor audiencearea can be set. (Not all output formats support this)

Step 2 – Measure the venue profile

See how to measure profile guide for more info.

Listener Height for floor audiencearea can be set. (Not all output formats support this)

Step 3 – Modify the parameters if needed

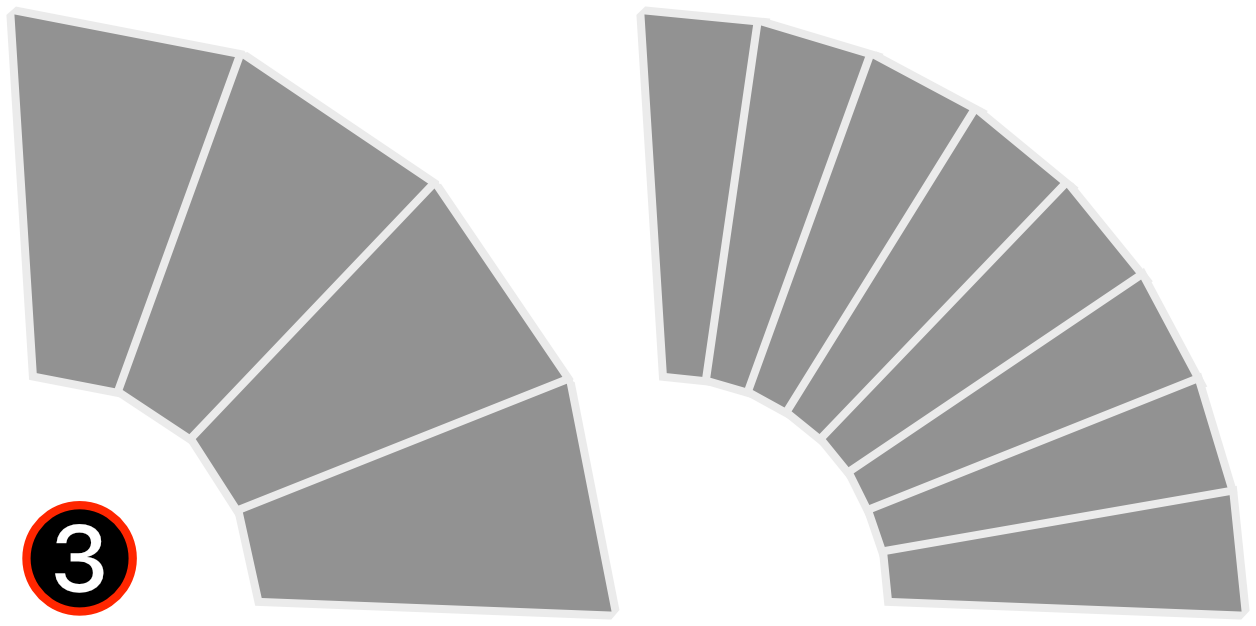

Set the Corner Resolution for rendering circcular shape. Higher resolution will result in smoother shape, but slower performance in many prediction softwares.
When Back Wall Height is set, additional plane is created after last measured target. This function can be turned off by setting the value to zero.
A Gap can be left between the floor and the profile, the Fill The Gap switch can be used to choose whether a plane is drawn in between or not.
Note

Back Wall can be used as ”ArrayProcessing Wall” or for overshooting purposes with autosplay feature.

Step 4 – Add elements or change the origin.

Origin

File Origin

At the bottom of the page you can find the origin menu button.
In the Circle model, the origin of the file is by default the center of the floor. This can be changed anytime.
The origin of the file can be moved relative to the center of the floor using, for example, a custom value.
